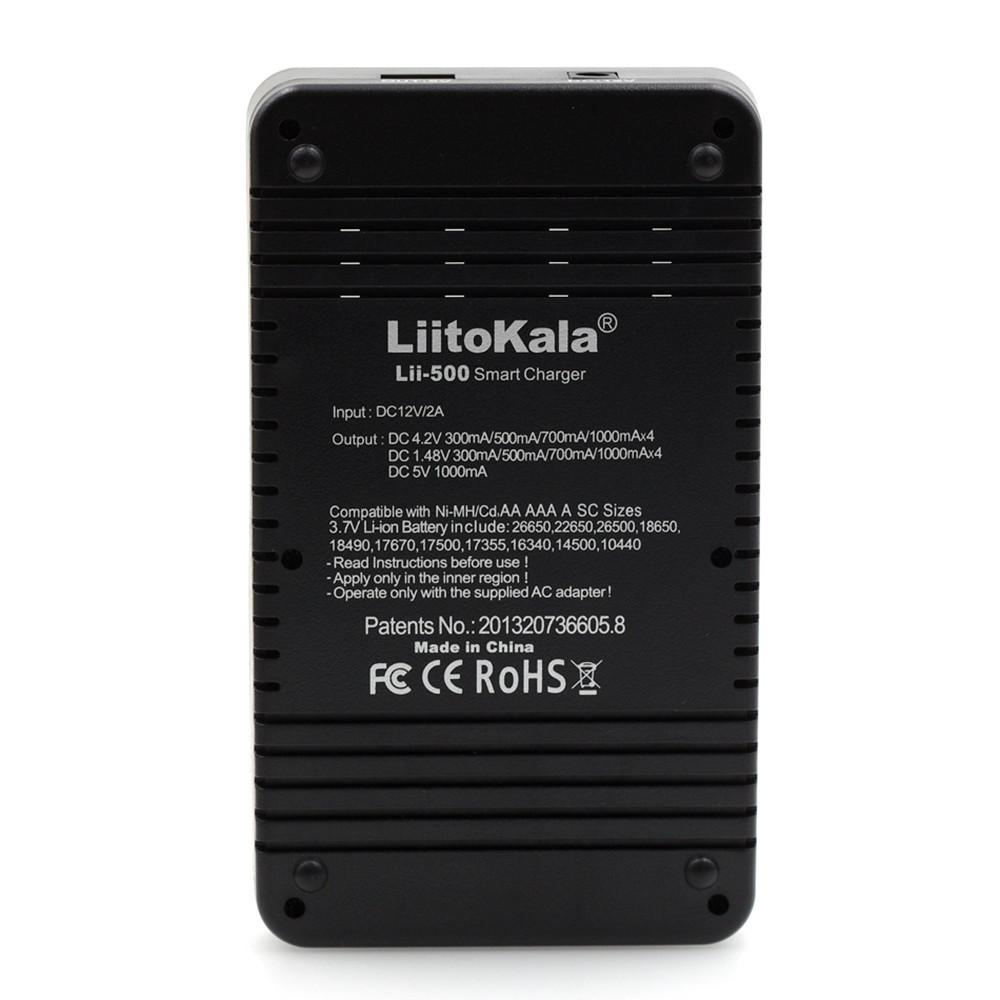

Product Description
★Input Current: DC 12V 2A(min)

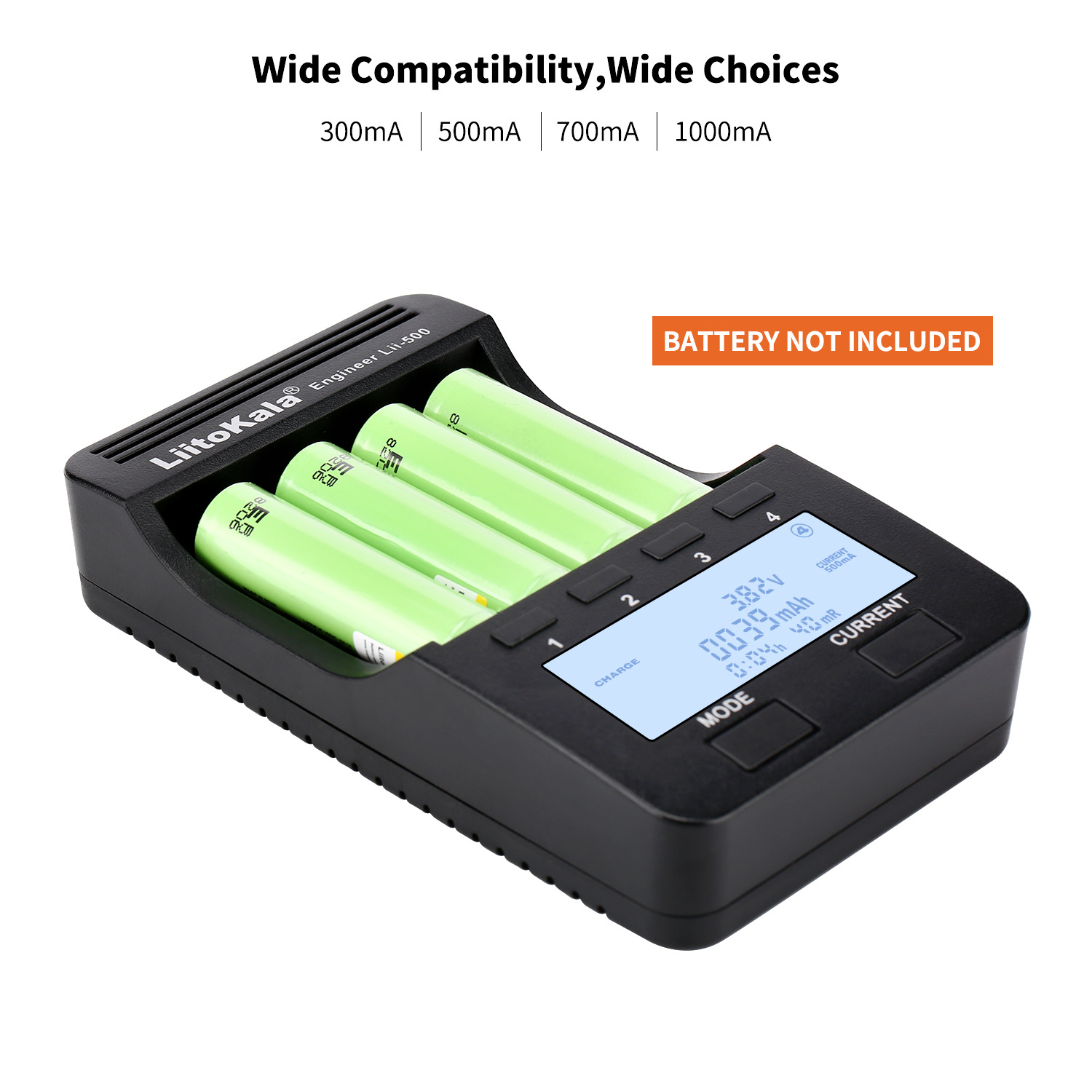

★Output Current: 300mA/500mA/700mA/1000mA
★Output Voltage: 1.48V / 4.2V
★Discharger Current: 300mA/500mA ★USB output:5A/1000mA
★Standby Current: <15mA
★Size: L * W * H/162*96*36mm

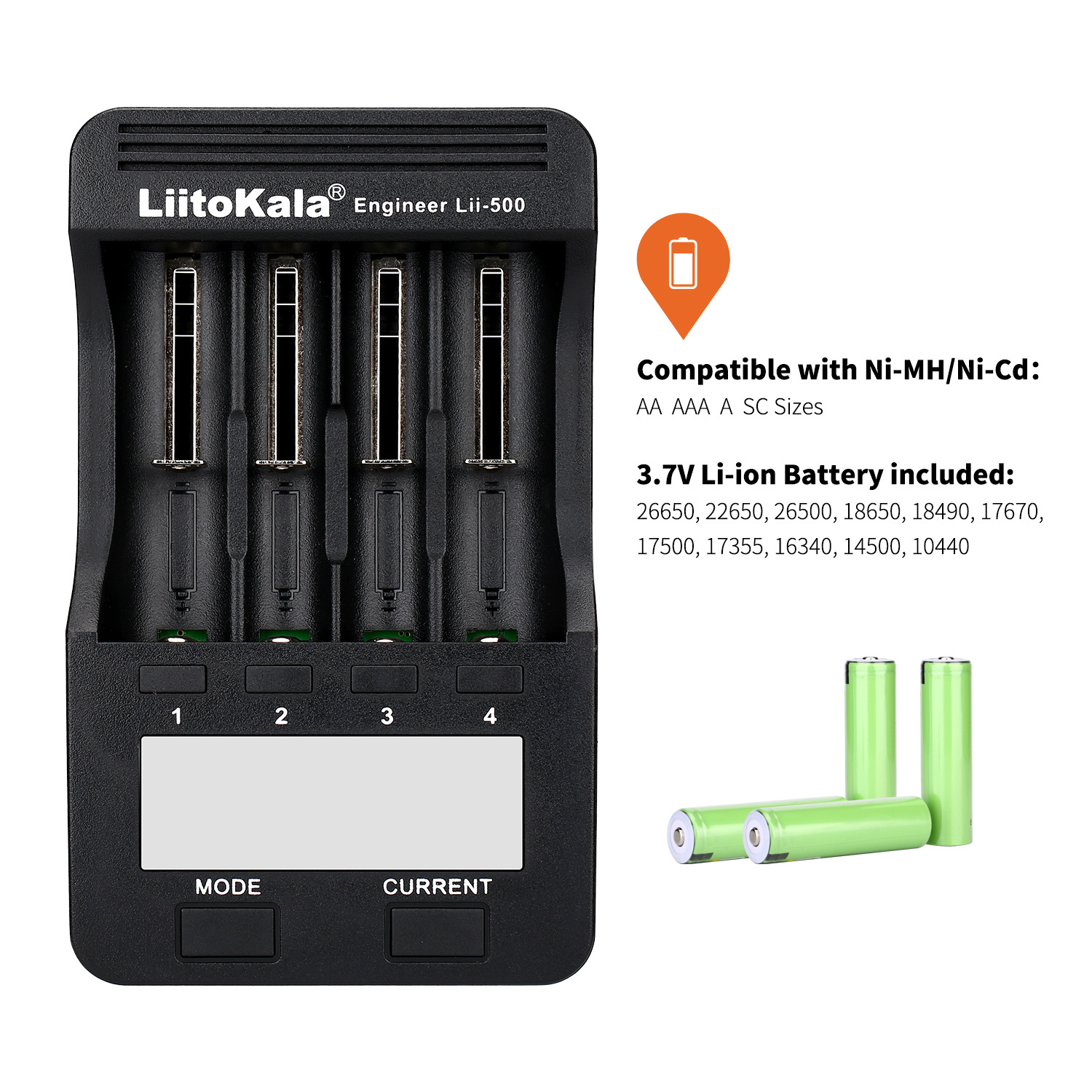

★For battery: 1.2V Ni-MH / Ni-CD to 3.7V Li-ion battery.For AA AAA 26650 etc

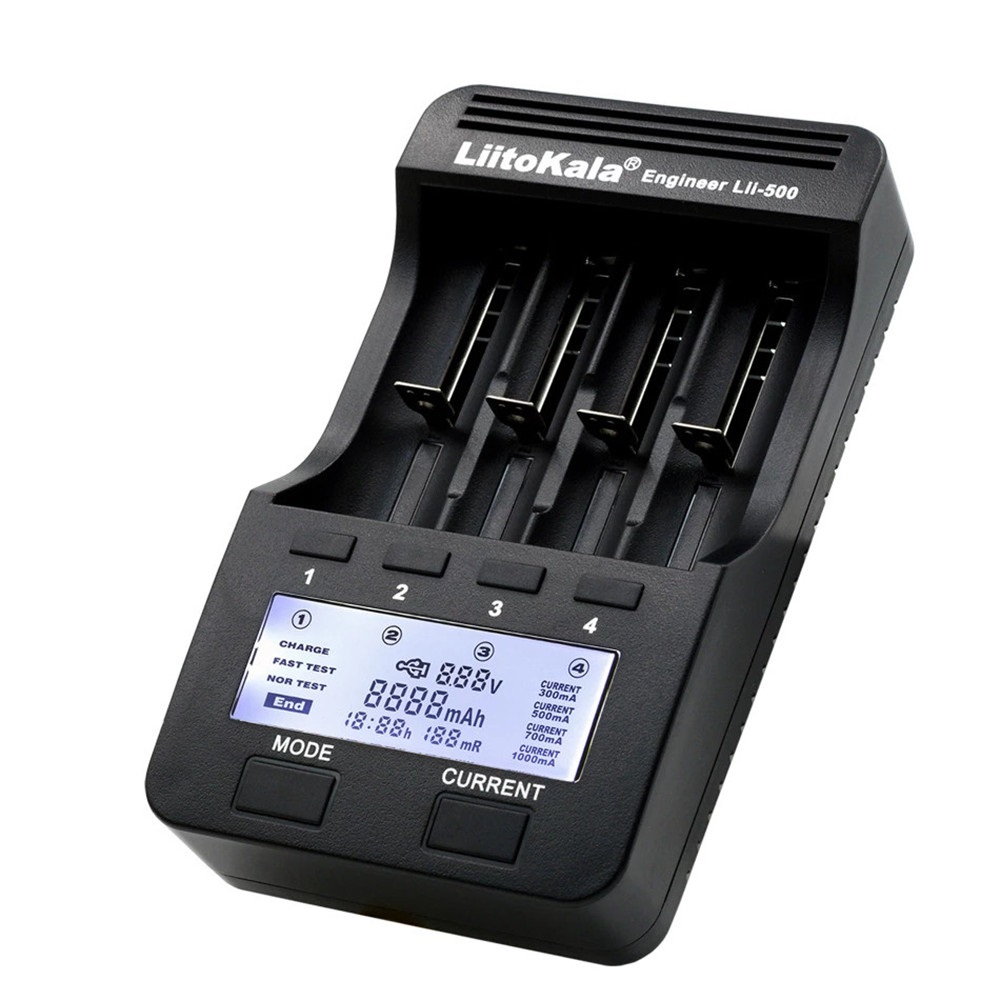

Instructions for use
●Charge: When you put the battery into the charger and turn on the power, the charger defaults to the charging mode. Only need to choose the charge current you need.
●Fasttest: Press and hold the Mode key for 3 seconds to enter the mode selection. Select Fasttest mode and press “current” to select the desired charging current. The charger will automatically complete the test, this time only need to wait for the test results.
●Nortest: Same operation as Fasttest.
Note:
■In the “Fasttest or Nortest” mode, if the choice of 300mA / 500mA charge current, then the charger default discharge current of 250mA. For energy saving time, it is recommended to select 700mA or 1000mA in “Fasttest or Nortest” mode. Because the discharge current at this time is 500mA.
■USB for the boost output, only 3.7V battery is valid, NiMH battery is invalid. The output current is 1000mA.
■About the test results: Charger tested out of the results for reference only, can not be used as any commercial and other proof. Internal resistance (mR) test results error is relatively large.

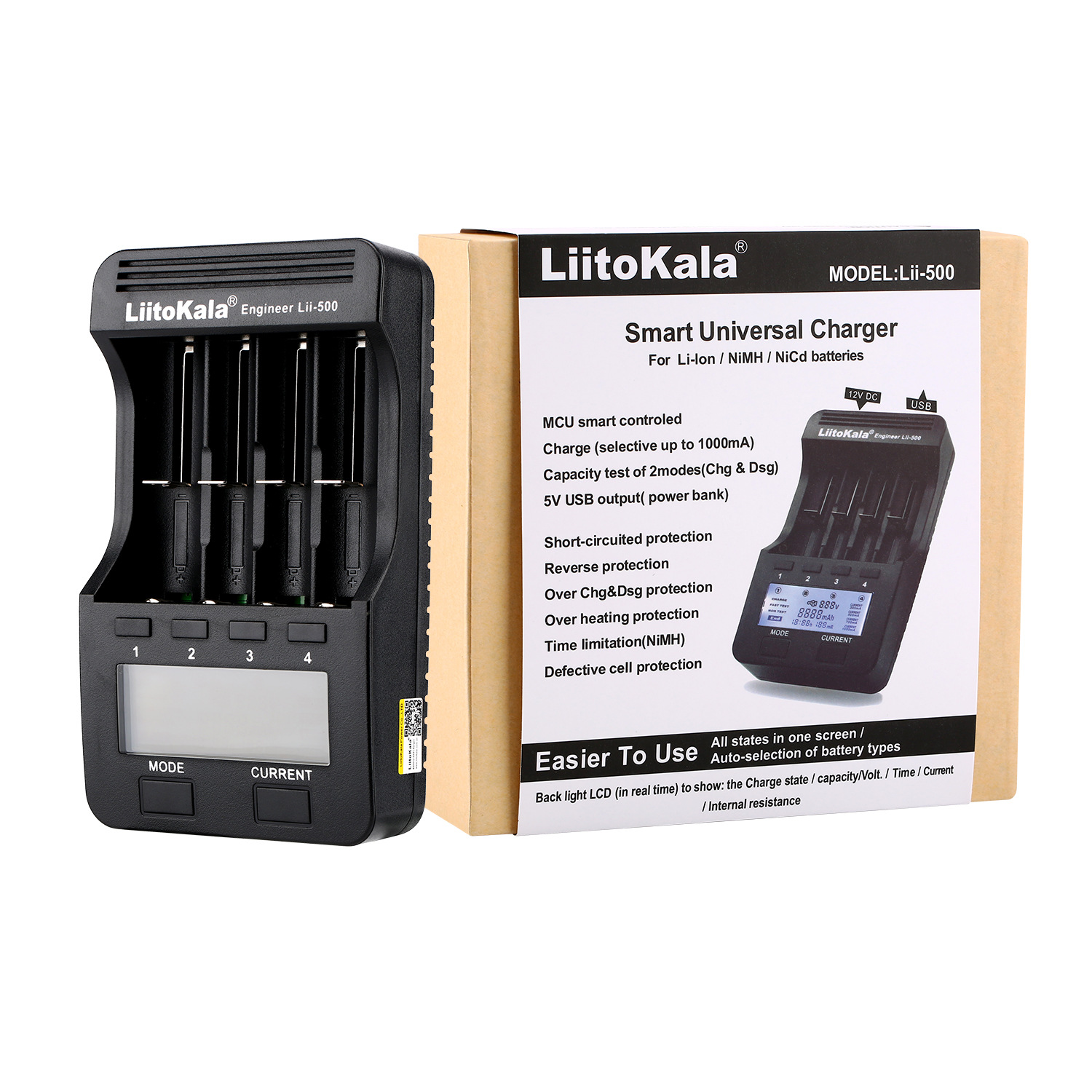

Product included:Lii-500 Charger + 12V / 2A adapter +Car cable.
